Moving Average using MATLAB : Application for 2D data

Introduction

Moving averages can be used with 2D data, such as images or matrices, despite the fact that they are typically linked with time series data. Moving averages are still used to smooth out fluctuations and identify underlying trends, but now in two dimensions.

Applying moving averages to 2D data involves calculating the average value within a sliding window across both rows and columns of the matrix. The window slides across the data, and for each position, the average value within the window is computed. This process helps in reducing noise, suppressing local fluctuations, and highlighting larger-scale patterns or trends in the data.

The choice of window size determines the level of smoothing applied to the data. A larger window size will result in a more pronounced smoothing effect, whereas a smaller window size will retain more local details. It's important to strike a balance between smoothing and preserving relevant information based on the specific analysis or visualization goals.

By applying moving averages to 2D data, it becomes possible to extract meaningful features, identify structures, or enhance certain aspects of the data. It can be particularly useful in image processing tasks, such as noise reduction, edge detection, or enhancing image details.

However, it's important to note that moving averages are just one of many techniques available for analyzing and processing 2D data. Depending on the specific context and requirements, other methods, such as filters, convolution operations, or more advanced algorithms, may also be applicable.

Overall, applying moving averages to 2D data provides a means to smooth out local variations, uncover underlying patterns, and enhance the interpretability of the data. It can be a valuable tool in various domains, including image analysis, signal processing, and data visualization.

Lets Practice ... !

To extend the concept of moving average to 2D matrices, we can calculate the moving average along both dimensions (rows and columns) to smooth out the data. Here's an example that generates a random 2D matrix, applies the moving average, and plots the results:

% Generate random 2D matrix of size 100x100

rng(1); % Set random seed for reproducibility
matrixData = randn(100, 100);

% Define the window size for the moving average
windowSize = 5;

% Create the averaging kernel for the moving average
kernel = ones(windowSize) / (windowSize^2);

% Apply the moving average using the conv2 function
movingAvg = conv2(matrixData, kernel, 'same');

% Plot the original data (in blue) and the moving average (in red)
figure;
subplot(1, 2, 1);
imagesc(matrixData);
colormap('jet');
colorbar;
title('Original Data');
subplot(1, 2, 2);
imagesc(movingAvg);
colormap('jet');
colorbar;
title('Moving Average');

% Adjust subplot positions for better visualization
set(gca, 'Position', [0.05 0.1 0.4 0.8]);
set(gca, 'Position', [0.5 0.1 0.4 0.8]);

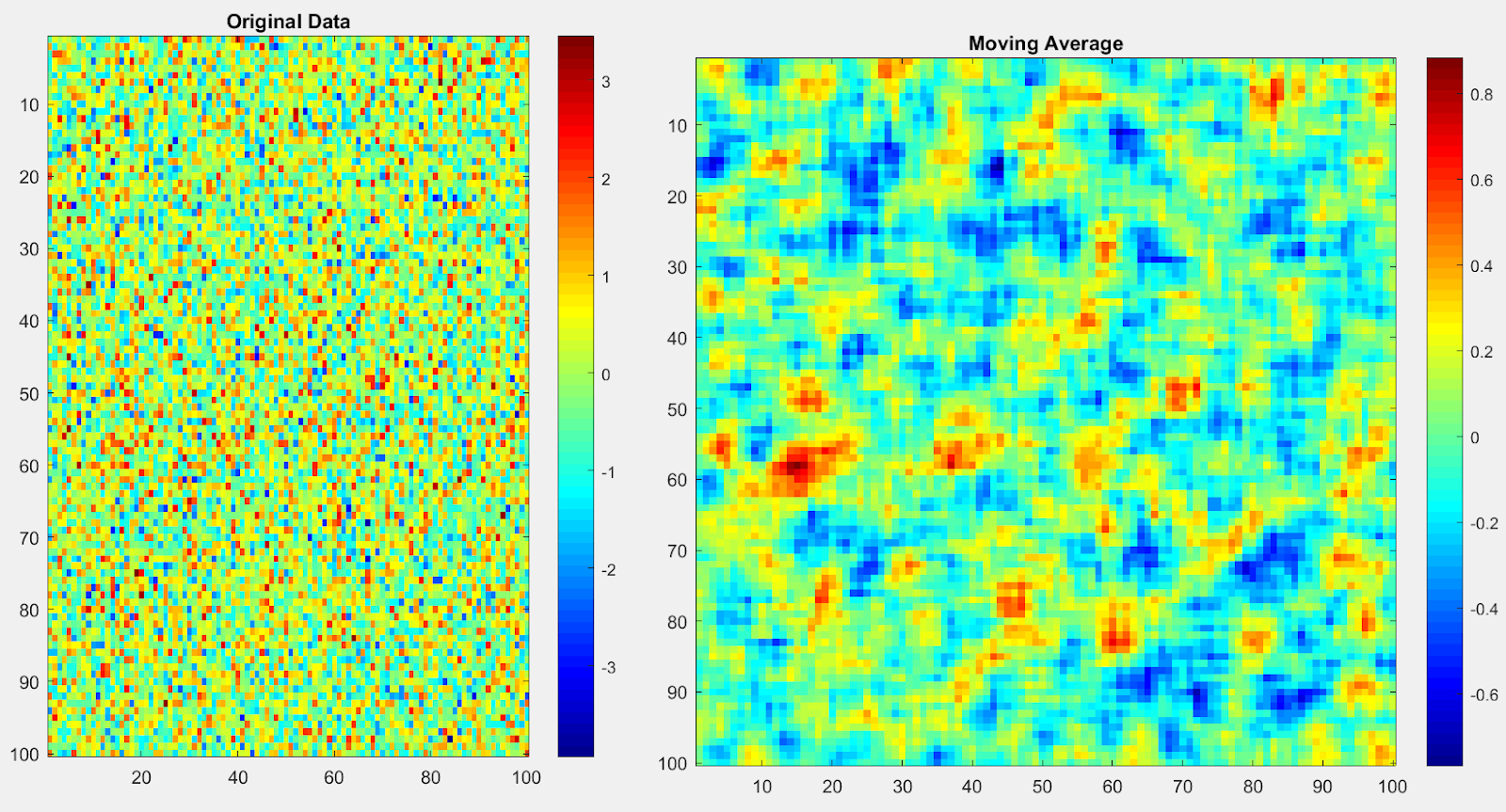

if you run the script, you'll get a result like this:

In this code, we define the window size for the moving average (windowSize) and create an averaging kernel (kernel) using the ones function. The ones function creates a matrix of ones with the same size as the window size.

We then apply the moving average to the matrixData using the conv2 function with the 'same' option, which ensures that the output has the same size as the input matrix.

The resulting plot shows the original data on the left subplot and the moving average on the right subplot, using the imagesc function to visualize the matrices.

By comparing the original data and the moving average, you can observe how the moving average smooths out local variations and reveals the larger-scale trends or patterns in the data. It helps in reducing noise, emphasizing the overall structure, and highlighting features that persist over a neighborhood of data points.

Feel free to adjust the window size, experiment with different 2D datasets, or explore alternative visualization techniques to suit your specific requirements.

If you have any further questions or need assistance with data analysis or MATLAB programming, feel free to ask!
